V8 rebuild pics

Pictures of my Land Rover 2003 overhaul

This involved doing an LPG conversion (putting a tank under the drivers seat), and building a high compression 4.6 V8 to get the most out of the gas

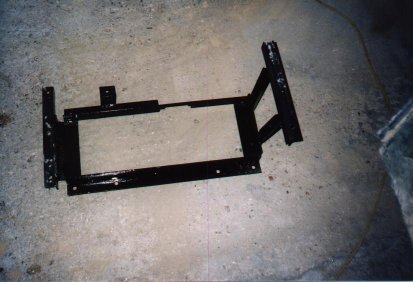

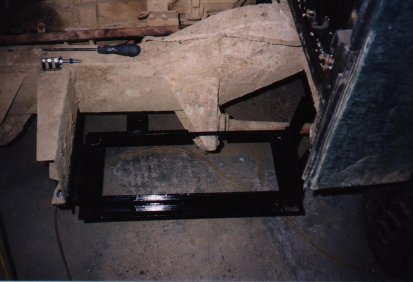

LPG Tank frame

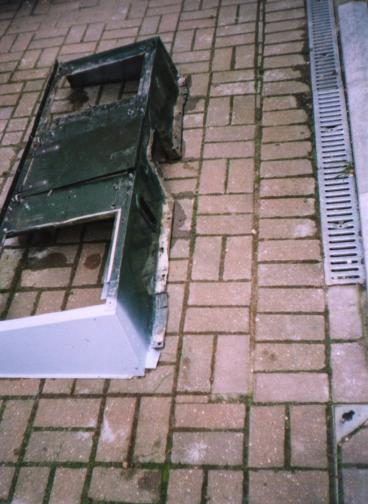

Seatbox showing small bulges in the front to clear the gas tanks

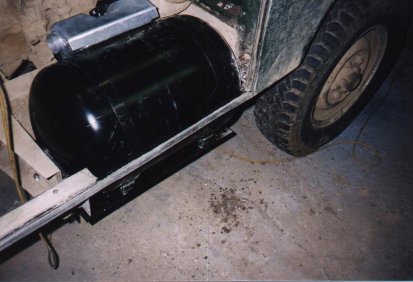

Fitted tank
Gas filling point

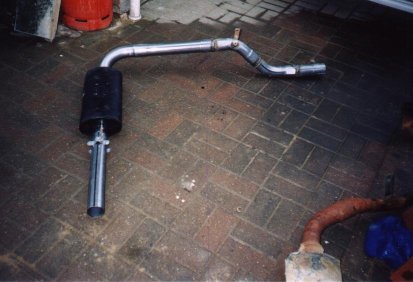

The exhaust system. It fits into a Janspeed Y-pipe

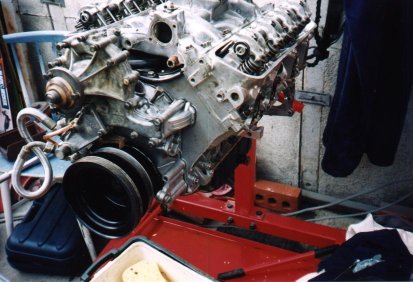

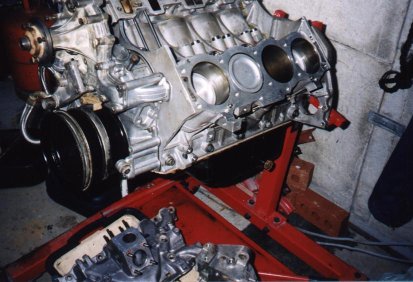

Partially built engine - bottom complete, one head on.

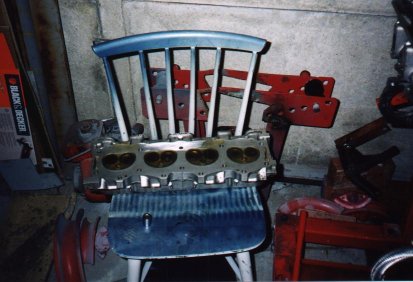

Testing a head for properly sealed valves

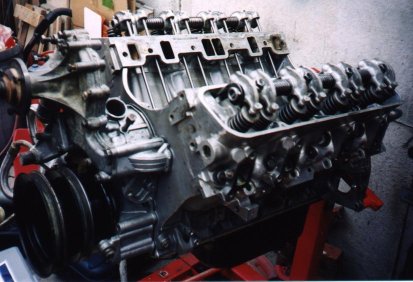

Both heads and valve gear on

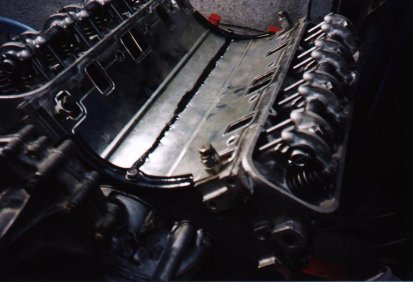

Modified valley gasket
Inlet manifold fitted. Note the shim underneath the rocker pedestal to compensate for the reduced head height.

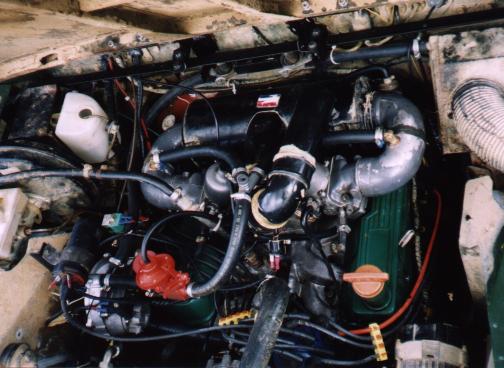

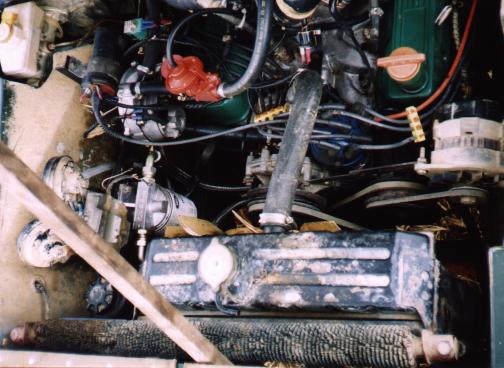

Engine bay

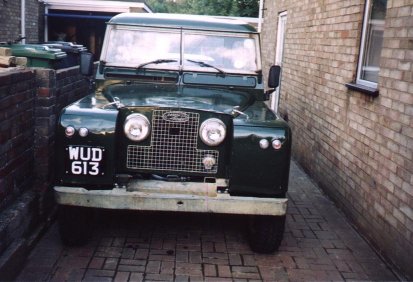

Front of the Landie, all finished

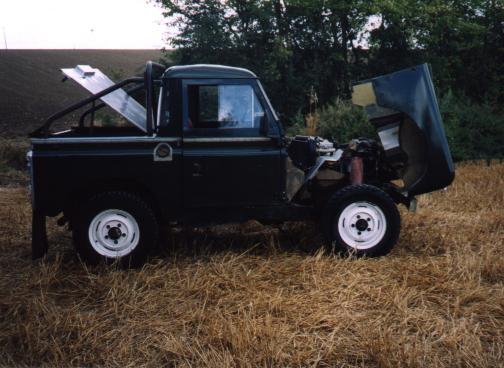

Side view

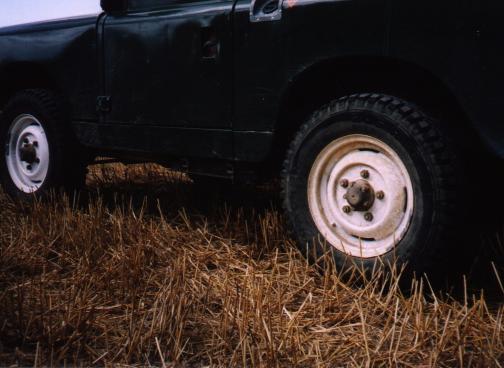

Low down side view - gas tank visible

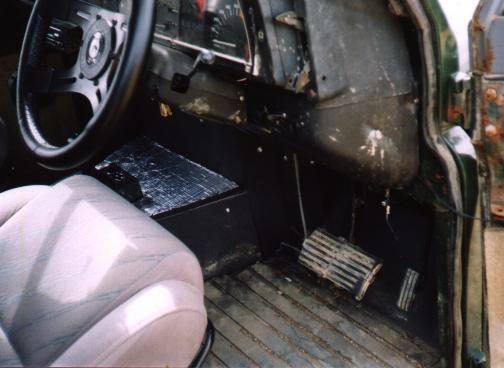

Driving position
